Product Description

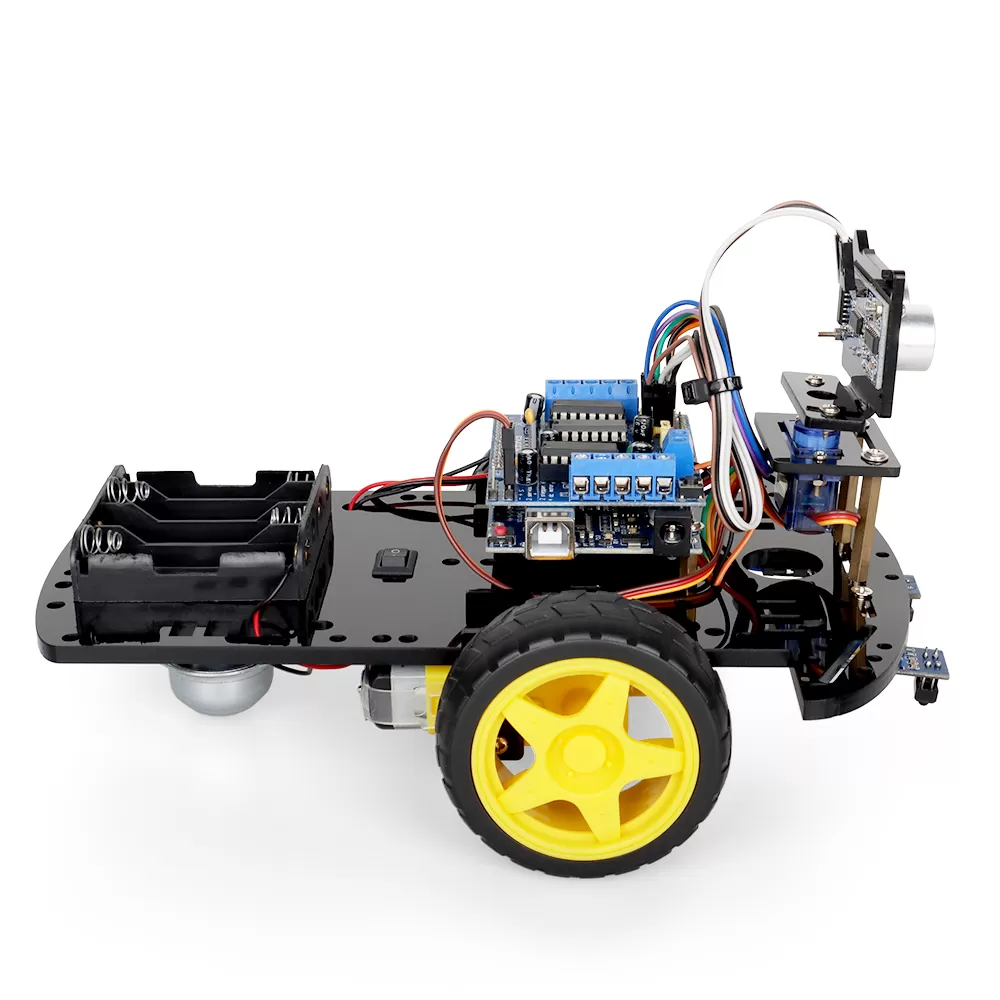

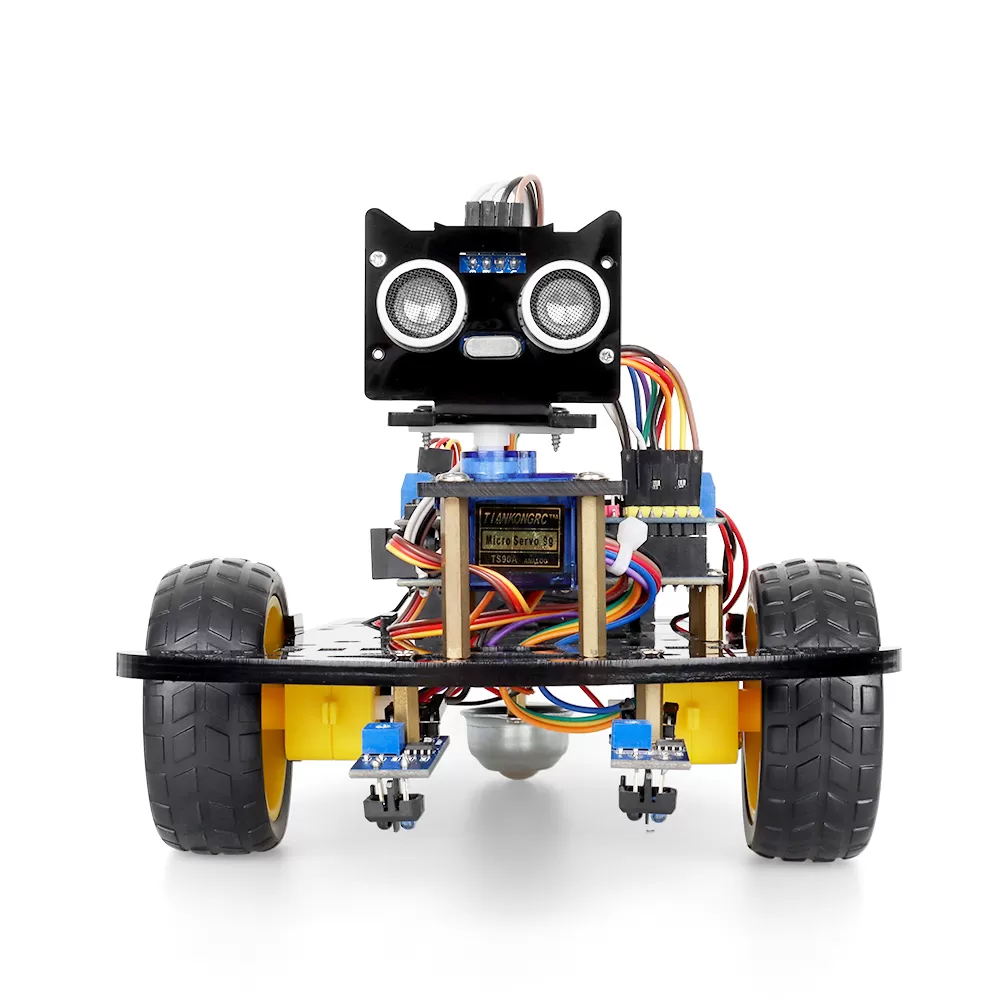

Tscinbuny Smart Robot Car Kit is a complete, programmable educational kit for Arduino Uno. With features such as line tracking, obstacle avoidance, and 2WD gear motors, this kit is ideal for building robots for various purposes, including range sensing, and more. Its laser-cut black acrylic chassis provides stability, while ample mounting holes allow for sensors and other modules to be customized.
Product Functions
01

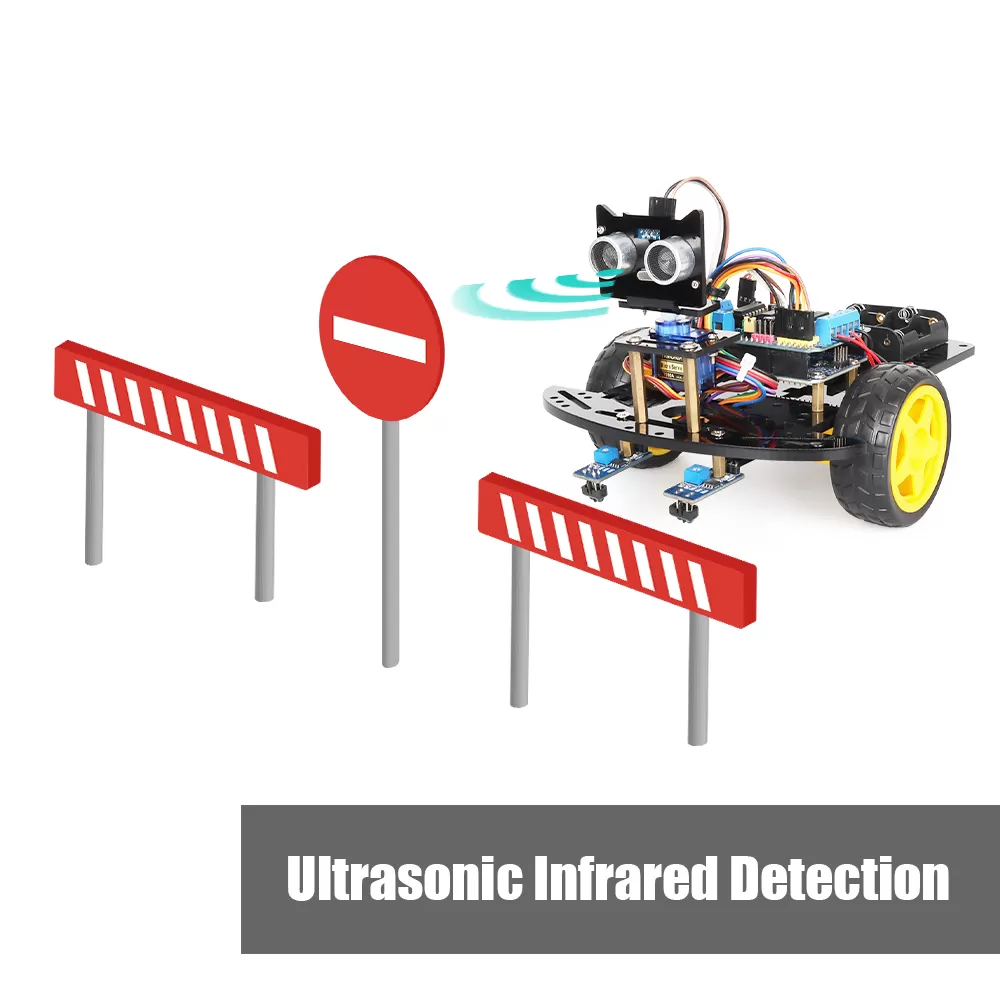

Automatic obstacle avoidance mode: When moving forward, it detects obstacles and automatically avoids them.
02
Automatic following mode: It moves along the object in front of it while keeping a certain distance.
03
Line tracking mode: It detects and moves along the black line.

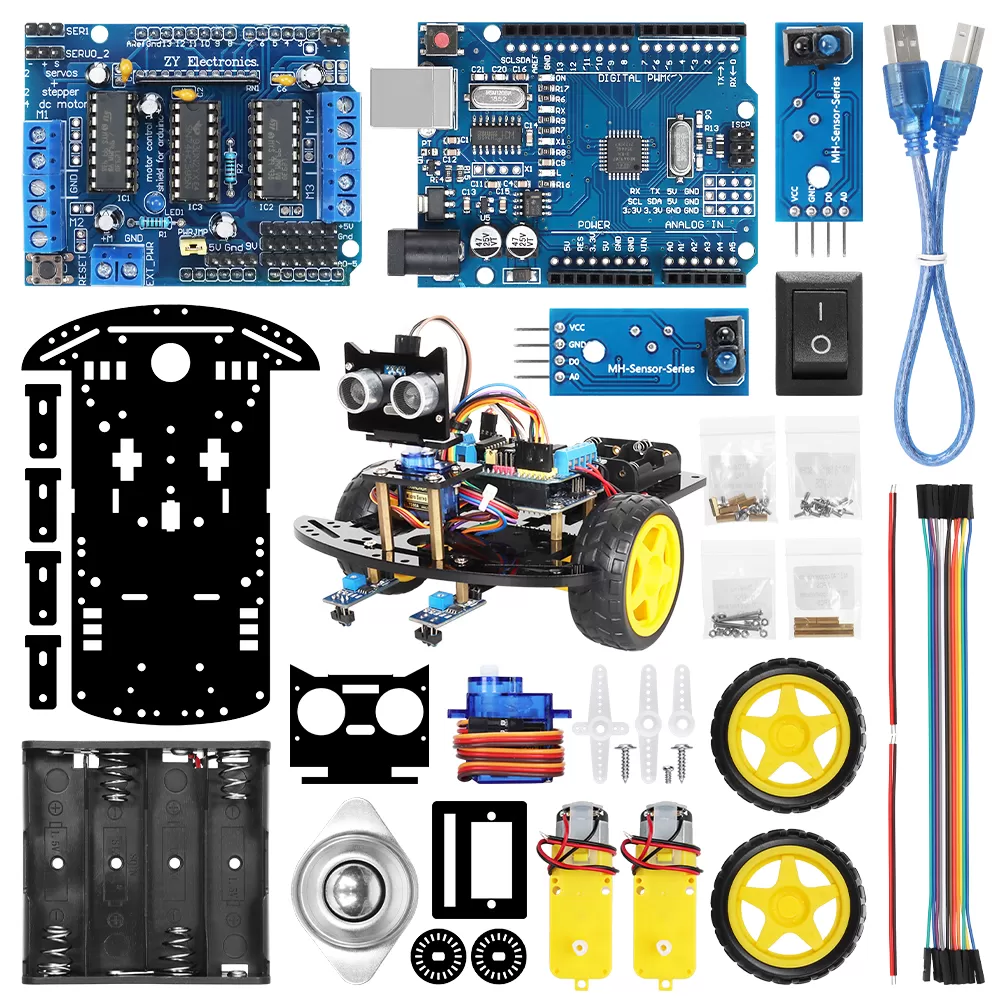

Product Main Hardware
1 x 4 AA holder
1 x ATmega328 Development Board Improved Version
1 x L293D Motor Drive Shield Expansion Board
1 x Ultrasonic Sensor HC-SR04
2 x Infrared Reflective Sensor Tracking Module
1 x SG90 180 Degrees 9G Micro Servo

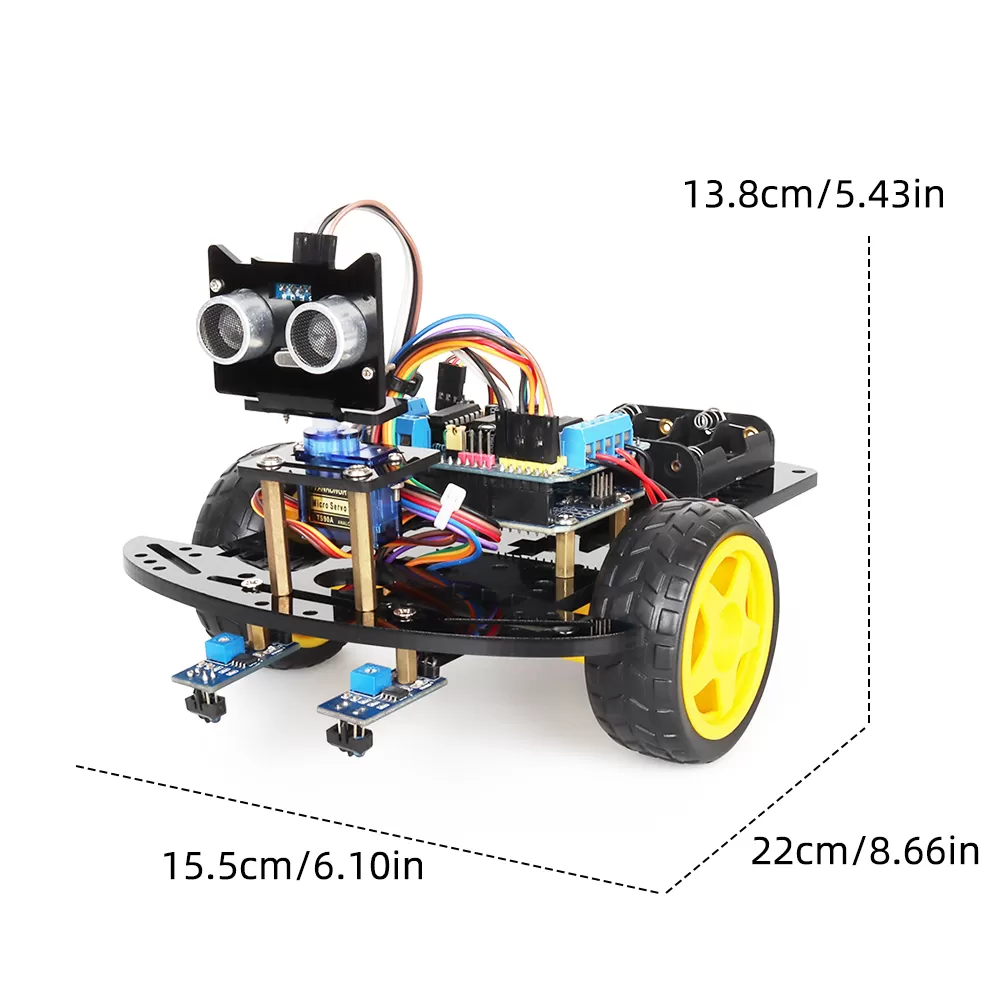

Product Basic Parameters
| Working voltage | 5V |
| Motor shaft length | 10mm |
| Motor gear ratio | 1:48 |
| Speed | 6.0V 100rpm / min |
| Wheel diameter | 66mm |
| Chassis material | Acrylic |
| Package | Carton Box |
