Product Description
1. Multi functional: three-way tracking, ultrasonic obstacle avoidance and following, camera image transmission function, control camera lighting pan tilt function, Wifi phone/PC video remote control car function (external antenna enhanced version); 5V solar charging real-time voltage monitoring function.
2. Moderate assembly difficulty: No need to solder the circuit, easy to install and plug the terminal connection port, and complete the assembly clearly and efficiently with theassembly manual.
3. High strength: sturdy material bracket.
4. High extension: Rich interfaces to expand other sensors and modules.

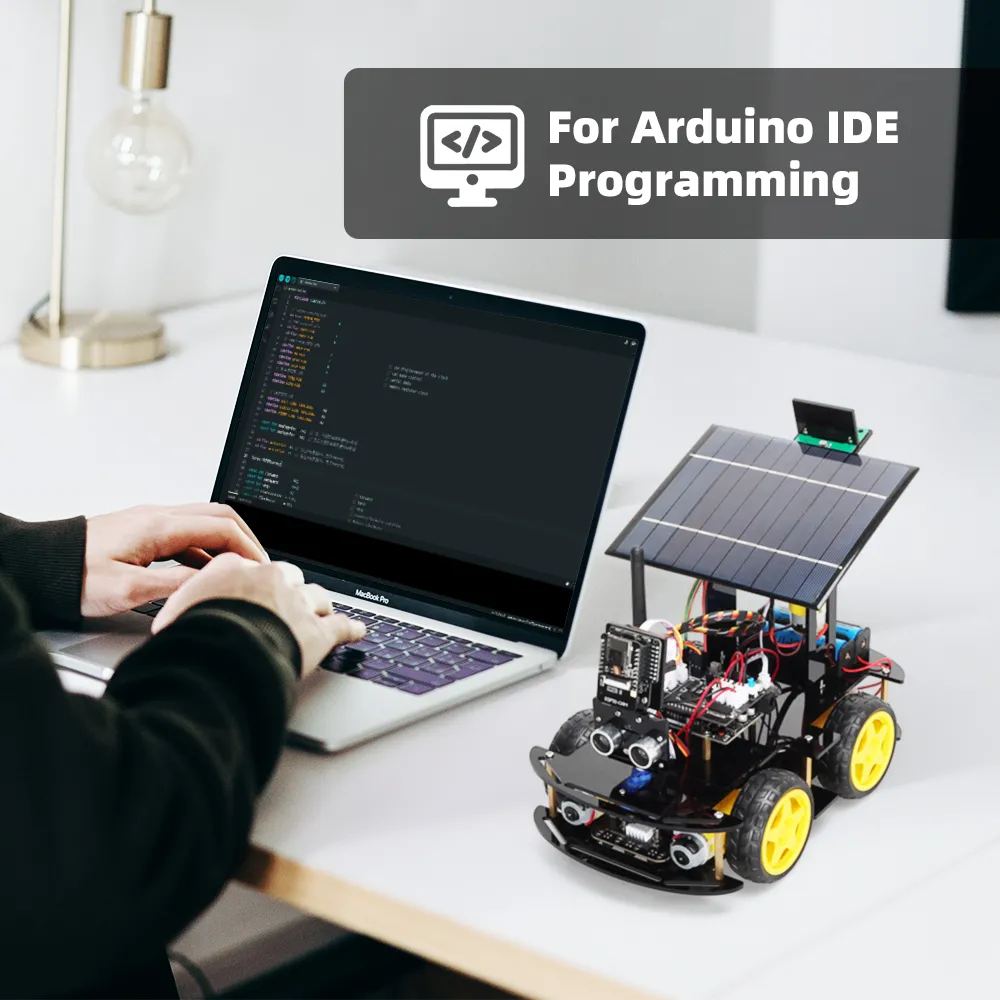

5. Basic programming: Arduino code based on C language.
6. Innovative feature: Combining Esp32 cam and Arduino to achieve multifunctional WiFi control.
Product Functions
01
Automatic obstacle avoidance mode: It will automatically move forward, avoid obstacles when detected, and continue moving forward.
02
Sound wave following mode: detects whether the distance ahead is following the current set 3.
03
Solar tracking charging mode: 5V solar charging gimbal uses photoresistor principle combined with solar charging module to provide battery charging function for smart cars.
04
Infrared tracking mode: When infrared tracking detects a black line, it will move forward along the black line.
05
WiFi camera mode: Control the switching of different functions through a web app to achieve real-time image transmission of camera data.
Product Main Hardware
1. Ultrasonic module
2. Three way tracking module
3. 180°servo motor
4. ESP32 CAM Camera gimbal
5. 5V 2.5W solar charging gimbal
6. 2-channel photosensitive module
7. 5V solar charging real-time voltmeter
Product Basic Parameters
| Working voltage | 5V |
| Input voltage | 7-9٧ |
| Maximum output current | 2A |
| Maximum power consumption | 25W (T=75 °℃) |
| Motor speed | 5v 200rpm/min |
| Ultrasonic induction angle | <15 degrees |
| Ultrasonic detection distance | 2cm~400cm |
| Mobile remote control distance | 10-50 meters |
| Servo motor angle range | 0~180° |
